HGLRC Zeus F760 30x30 Stack - F722 FC + 60A 3-6S BL32 4-in-1 ESC
$139.99
Out of Stock
Only left for same day shipping. Order now!

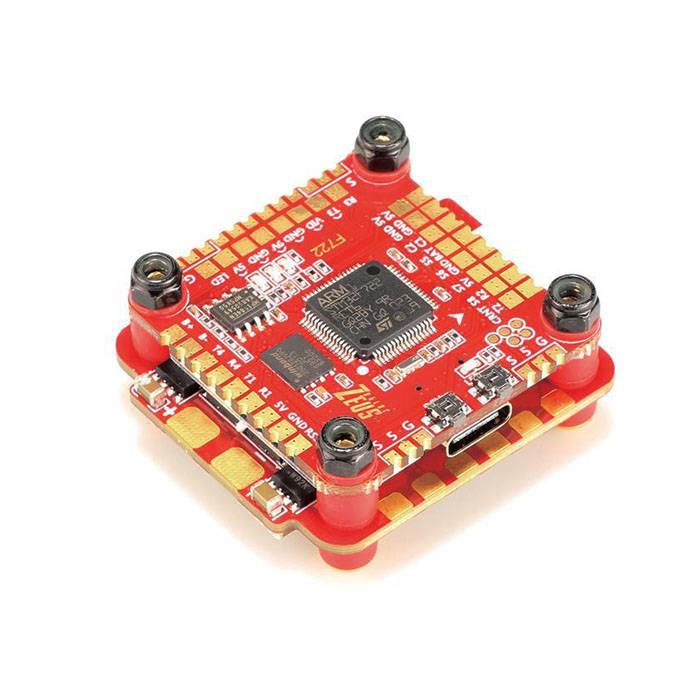

HGLRC Zeus F760 30x30 Stack - F722 FC + 60A 3-6S BL32 4-in-1 ESC
The HGLRC Zeus F760 30x30 stack comes with the Zeus F722 Flight Controller and the Forward 60A BL32 3-6S 4-in-1 ESC and is compatible with the DJI Digital HD FPV System.
About this product
The HGLRC Zeus F760 30x30 stack comes with the Zeus F722 Flight Controller and the Forward 60A BL32 3-6S 4-in-1 ESC and is compatible with the DJI Digital HD FPV System. This stack features STM32F722 RET6 CPU, MPU6000 MPU, supports up to 6S, and comes with other cool specs!
Specifications
- Usage:for 100mm-450mm Frame Kit
- Installing Hole:30.5X30.5mm.M3
- Recommended motor: 2207/2306/2408 (Not included)
- Weight:32.7g
Zeus F722 Flight Controller
- MPU: MPU6000
- CPU:STM32F722 RET6
- Input Voltage:3-6S Lipo
- BEC Output:5V/3A,9V/2A
- Weight:7.6g
Forward 60A BL32 3-6S 4in1 ESC
- CPU:STM32F051
- Input Voltage:3-6S Lipo
- Steady Current:60A
- Peak Current:65A（10 Sec）
- Weight:18g

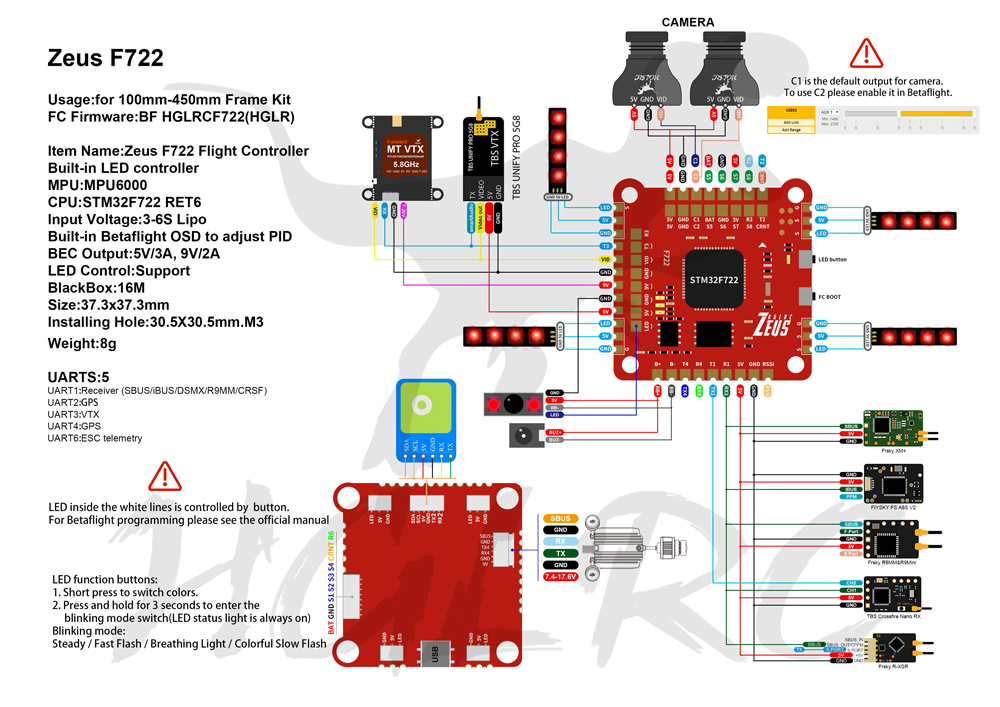

Diagram
Download hex file for iNAV 2.5.1 here. Or use target "HGLRCF722" on iNAV 2.5.2 and future versions.
Download hex file for emuflight here.
See Manual Here
Includes
- 1 x Zeus F722 Flight Controller
- 1 x Forward 60A BL32 3-6S 4in1 ESC
More Information
| SKU | 14878 |
|---|---|
| UPC (GTIN) | 789862856122 |
| Manufacturer | HGLRC |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 30.5x30.5mm |
| Amps | 60 Amps |
| Flight Controller Processor | F7 |
| Voltage | 3-6 Cell (11.1v-22.2v) |
| ESC Firmware | BLHeli_32 |
| Number of ESC's | 4 ESC's in 1 |
