HGLRC Zeus 48A 3-6S 4-in-1 BLHeli_S 30x30 ESC
$45.99
Out of Stock
Only left for same day shipping. Order now!

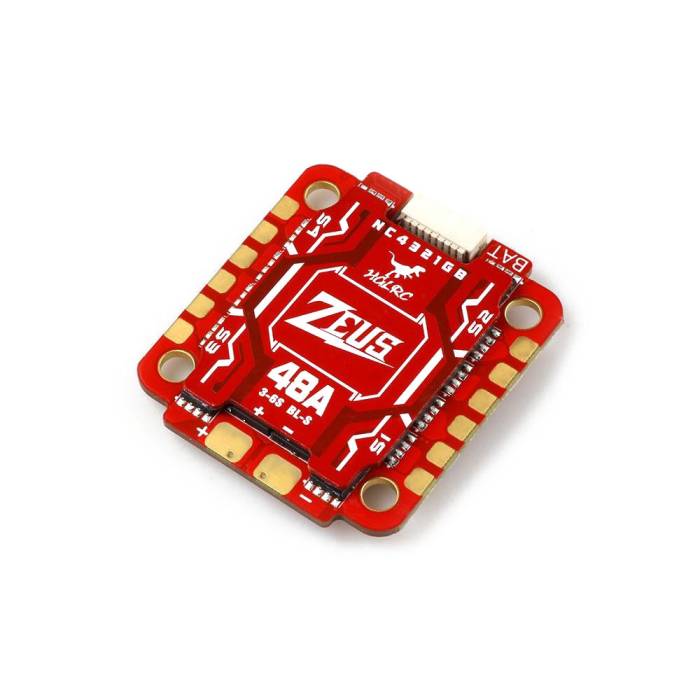

HGLRC Zeus 48A 3-6S 4-in-1 BLHeli_S 30x30 ESC
The HGLRC Zeus 48A ESC is a 4-in-1 ESC with a 30.5x30.5 mounting pattern. The heat sink radiation design makes this perfect for freestyle FPV racing by providing heat dissipation for high power and improved stability, and increased shock absorption.
About this product
The HGLRC Zeus 48A ESC is a 4-in-1 ESC with a 30.5x30.5 mounting pattern. The heat sink radiation design makes this perfect for freestyle FPV racing by providing heat dissipation for high power and improved stability, and increased shock absorption.
Features
- An Integrated LED controller allows quick programming of LEDs with the push of a button.
- Easy direct soldering for XM+, NANO receiver, and TBS Nano VTX
- Quickly connect DJI and LED and GPS via socket
- Maximum BEC 9V/2A and BEC 5V/3A output
- Integrated barometer and 16M black box.
- Reserved Soldering Pad
- Enlarged Soldering Pad
- High-Speed Blackbox
- Ammeter Built-in
- Current Sensor
- TVS Diode
Specifications
- Support Damped Mode: DShot600/300/150/Oneshot125/42, MultiShot
- Usage: for 100mm-450mm Frame Kit
- Mounting Hole: 30.5x30.5mm, M3
- Peak Current: 55A (10s)
- Input Voltage: 3-6S Lipo
- Constant Current: 48A
- Size: 45x40mm
- Weight: 18.3g
Includes
- 1x HGLRC Zeus 48A 3-6S 4-in-1 BLHeli_S ESC
- 4x M3 Shock Absorption (Red)
- 1x SH1.0 8PIN Cable 60mm
- 1x Connecting Wire (XT60)
- 1x Capacitor
More Information
| SKU | 16446 |
|---|---|
| UPC (GTIN) | 764613333534 |
| Manufacturer | HGLRC |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 30.5x30.5mm |
| ESC Firmware | BLHeli_S |
| Amps | 48 Amps |
| Voltage | 3-6 Cell (11.1v-22.2v) |
| Number of ESC's | 4 ESC's in 1 |
