FrSky RB-10 Redundancy Bus-10
FrSky RB-10 Redundancy Bus-10
$42.99
$29.99

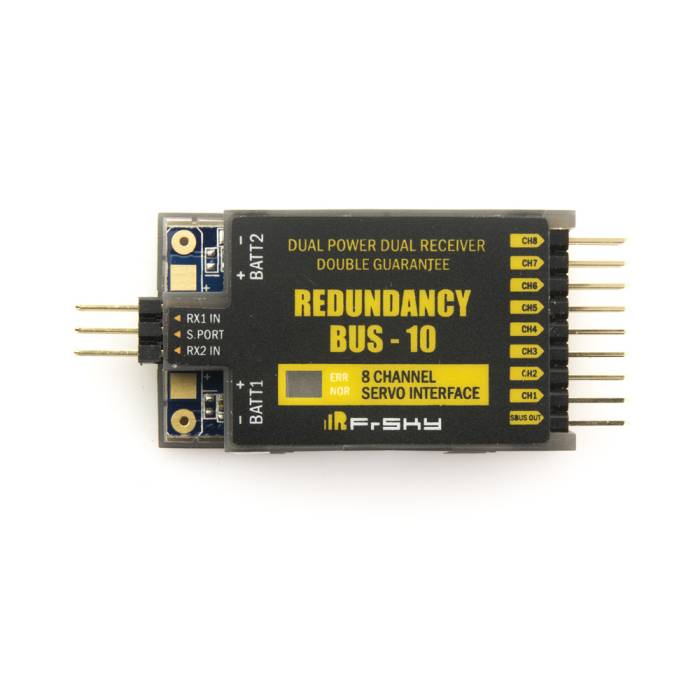

FrSky RB-10 Redundancy Bus-10
The FrSky Redundancy Bus is a unique switchboard module that can operate 2 receivers and 2 batteries to provide you with total peace of mind when flying your model.
About this product
The FrSky Redundancy Bus is a unique switchboard module that can operate 2 receivers and 2 batteries to provide you with total peace of mind when flying your model. You can also run your servos from the switchboard with complete protection from high voltage overload.
The Redundancy Bus also supports Smart Port telemetry for your Taranis and will provide telemetry feedback for voltage and overload indication.
Specifications
- Recommended input voltage range: 4-8.4V
- Number of servos: up to 8
- Operating temperature range: - 20~75°C
- Weight: 10g
- Dimension: 63x27x10.5mm
Features
- Overload protection on each channel and RXS
- Dual power dual receiver double guarantee (connect up to 2 batteries and 2 receivers)
- 50Hz mode of servo outputs (20ms period) or equal to the input of SBUS cycle
- Integrated S.Port telemetry feedbacks (including voltage, overload indication, etc)
- Servo signal output period settable
- High voltage servos supported
- Compact size and firmware upgradable
Videos
Note: You will need to solder the battery connectors of your choice to the RB-10's pre-tinned solder pads.
More Information
SKU | 6890 |
---|---|
UPC (GTIN) | 721248871879 |
Manufacturer | FrSky |
NDAA Compliant | No |
Item Returns | This item can be returned |
