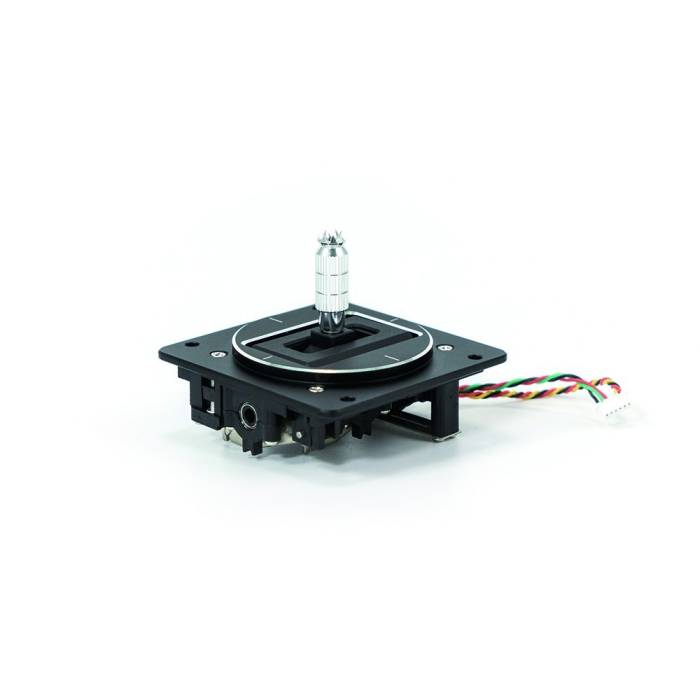

Upgrade your Taranis Q X7 with this plug-n-play high resolution M7 Gimbal from FrSky. The highly sensitive Hall sensors will not wear out quickly. It has an extremely smooth feel with the quad ball-bearings and the metal outer construction. Thicker 4mm stick ends give you a solid link to your controls. Fully adjustable tension and easily disable the self centering axis with one screw. This is a must have accessory for achieving those precision flight maneuvers.

Features

• Hall sensor
• 4 ball-bearings
• Adjustable tension
• Can be enable or disable self centering on both axis and ratcheting on the Y axis
• Special material quality that wears well

Specifications

• Model: Gimbal-M7
• Supply Voltage (VCC): DC 3.0 ~ ±0.5V
• Sensitivity: 2.50 mV/G
• Linear Output Voltage Range: 0.1 ~ （ VCC +0.1） V
• Output Load Resistance (output to ground) >15KQ
• Quiescent Output (TA = 25°C, B = 0 G): 0.5 × VCC
• Noise (no load): ≤40mVpp
• Quiescent Output Power Supply Rjection: -69dB

Mechanical Specifications

• X-Axis Adjustable Angle Range: 60°±5°
• Y-Axis Adjustable Angle Range: 60°±5°
• Adjustable Height Range: 24.5mm-30.5mm
• Installation Dimension: 42.9mmx54mm

Includes

• 1x FrSky M7 Hall Sensor Gimbal for FrSky Taranis Q X7
