DJI N3 Flight Controller
DJI N3 Flight Controller
Out of Stock
About this product
The N3 is a third generation NAZA flight control system designed for serious multi-rotor enthusiasts. It is a reliable and robust system with double IMUSs and can be expanded with external high-performance sensors. It uses advanced control algorithms and sensor fusion algorithms to maintain complete stability and integrity of the aerial system.
The N3 is fully compatible with the DJI Onboard and Mobile SDKs and other DJI products, allowing developers to optimize the system for specific applications. When used with DJI Lightbridge 2, it provides direct access to DJI GO features including Intelligent Flight Modes.

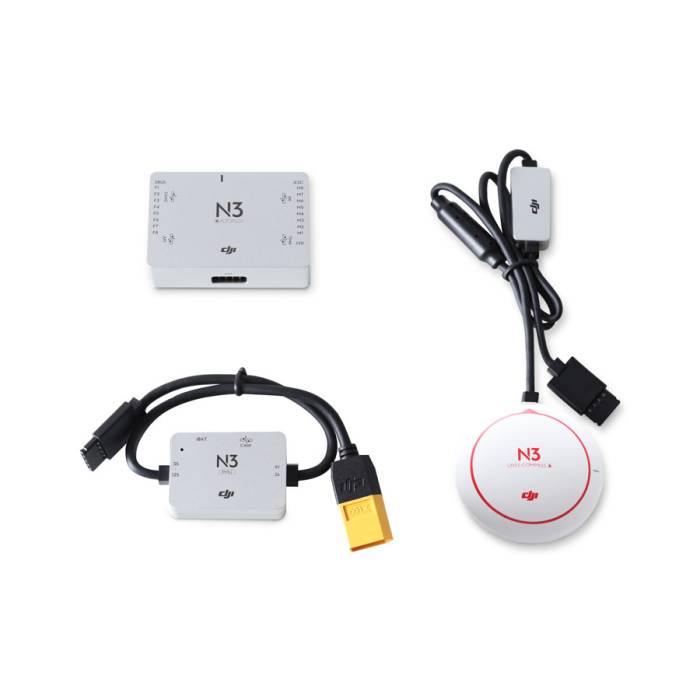

With all essential components integrated into the N3 flight controller (including double IMUs, barometer and data recorder), the device is powerful and highly compact to work together with the GNSS-Compass module (including GPS and GLONASS), PMU module and LED module.
General
| Supported Multi-rotor | Quadcopter: I4，X4; Hexacopter: I6，X6，Y6，IY6 Octocopter: X8，I8，V8 |
|---|---|
| Supported ESC | 400Hz frequency, DJI Intelligent ESC with feedback |
| Recommended Battery | 3S to 12S LiPo or DJI Smart Battery |
| Other DJI Products Supported | DJI GO, iOSD, DATALINK PRO, Zenmuse series, Ronin series, X3, X5, X5R, Z15, Ronin-MX, DJI propulsion systems, S900, S1000, S1000+, etc. |
| Built-in Functions |
|
|---|
| Protection Function |
|
|---|
Flight Performance
| Hovering Accuracy | Vertical: ±0.5m Horizontal: ±1.5m |
|---|---|
| Maximum Wind Resistance | <10m/s |
| Max Yaw Angular Velocity | 150 deg/s |
| Max Pitch Angle | 45° |
| Max Ascending Velocity | 5m/s |
| Max Descending Velocity | 4m/s |
Extending Function
| PWM I/O Ports | F1-F4 ports for output F5-F8 ports for I/O function |
|---|---|
| Data Storage | Built-in data recorder |
| Intelligent Flight Modes | Home Lock and Course Lock. (with Lightbridge 2) Point of Interest, Waypoints, |
| Remote Parameter Adjustment | Knob with sbus Receiver enabled by DJI ASSISTANT2 It can be realized in DJI GO APP With Lightbridge 2 |
| Assistant software | DJI ASSISTANT 2, support simulator support MAC OS & windows |
| iOSD | iOSD Mark II, iOSD mini |
| Zenmuse Gimbal&Camera | Z15, Ronin-MX, X3, X5,X5R |
| Propulsion systems | all |
SDK
| SDK | Mobile SDK Onboard SDK |
|---|---|
| SDK Port | API/CAN2 |
HARDWARE
| Weight | Total： 132g
|
|---|---|
| Power Consumption | Normal 3.3W Max 4.8W |
| Size |
|
| Operating Temperature | -10°C to +55°C |
More Information
| SKU | 6588 |
|---|---|
| UPC (GTIN) | 190021282452 |
| Manufacturer | DJI |
| Mounting Pattern | N/A |
| NDAA Compliant | No |
